Artículo No.:
TMAX-MMBPago:
L/C,T/T,Western Union, PaypalOrigen del producto:
ChinaPuerto de embarque:
XiamenTiempo de espera：
5 dayscertificado:
CE ROHS Certificate
18650 21700 26650 32650 Máquina pegadora de papel aislante de batería cilíndrica
característica
Este La máquina puede utilizar un gran rollo de papel de cebada o pvc para pegar automáticamente Células cilíndricas.
1. pegatinas pegadas estable , consistente y duradero .
2. falla automática alarma.
3. fácil de programar , ajustar y operar para nuevas manos.
4. alta eficiencia, completamente automatico , ahorrando mano de obra costes.
especificación
|
fuente de gas de entrada |
0.4-0.8Mpa |
|
función Estilo: |
accionamiento paso a paso con neumático |
|
entrada Voltaje: |
AC220V |
|
pegatina Matrials: |
papel de cebada o pvc |
|
pegatina Matrials Tamaño: |
papel de cebada Maxium 350 mm; Desplazamiento diámetro interno 72-75MM |
|
celda de batería adaptable |
18650 batería u otras baterías cilíndricas |
|
Energía: |
energía eléctrica o neumática |
|
control Instrumento: |
7,5 pantalla de contacto de pies, máquina de programación PLC y motor paso a paso |
|
electrodos al cuerpo Distancia: |
100 mm (escalable ajustable) |
|
Productividad: |
4000 piezas / h; singal 4 piezas |
|
dimensiones externas |
1,3 millones * 1 millón * 1,3 millones |
Detalles de producto
Wechat:17720812054 Whatsapp:+86 13174506016 Email:David@batterymaking.com
Wechat:17720812054 Whatsapp:+86 13174506016 Email:David@batterymaking.com
Wechat:17720812054 Whatsapp:+86 13174506016 Email:David@batterymaking.com

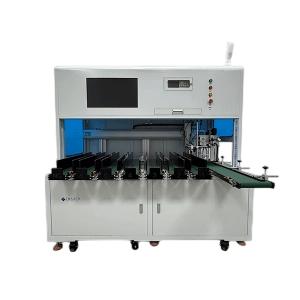

7 Channel Pouch Cell Sorting Machine Functional Overview The Automatic Polymer Lithium Battery Sorting Machine is a high-efficiency system designed for the grading and sorting of lithium polymer batteries. It is suitable for power batteries, 3C digital batteries, and energy storage batteries. The machine provides precise cell grading to meet battery pack assembly requirements and complies with international safety standards. With its intelligent automation design, it improves production efficiency, consistency, and supports the development of Industry 4.0 manufacturing. Main Performance Parameters 1) Applicable Battery Type: Polymer lithium battery 2) Compatible Size Range: Length 50–170 mm, Width 20–100 mm, Height 4–20 mm 3) Control System: PLC programmable control 4) Integrated Functions: Fully automatic loading, testing, code scanning, and sorting process, reducing manual intervention 5) MES Interface: Real-time recording of QR code and test data, with SPC analysis report generation 6) Sorting Speed: Up to 1000 PCS/hour per unit — more than three times the efficiency of manual sorting Equipment Environmental Requirements Item Parameter Ambient Temperature 5°C–35°C Humidity 20%–90% Air Supply Pressure 0.5–0.6 MPa Power Supply 220V, 50Hz/60Hz Floor Load Capacity ≤200 kg/m² Grounding Type Direct grounding Installation Site Clean, level, no vibration or electromagnetic interference Noise Level ≤80 dB Equipment Parameters Item Specification Machine Dimensions L1800 × W1570 × H1750 mm Machine Weight Approx. 493 kg Machine Color Computer white (customizable) Total Power ≤1.5 kW Machine appearance and dimensions Mainframe length*width*height: L1800mm*W1570mm*H1750mm Machine Structure and Configuration The sorting machine consists of a metal frame platform, pneumatic components, servo motors, sensors, PLC controller, and industrial control system. Main Configuration Table Category Component Brand Remarks Main Body Cabinet Frame TMAX Metal base and aluminum profile upper frame Main Worktable TMAX Electrical System Barcode Scanner Honeywell Industrial PC JIANO Servo Motor XINJIE PLC Controller XINJIE Display Philips / HKC Internal Resistance Tester HEPU Standard Components XingChen / Deke
